Hammerfix N-S
  • Product Picture: "fischer Hammerfix N 8 x 80/40 S with countersunk head gvz SB-card"
  • Packaging: "fischer Hammerfix N 8 x 80/40 S with countersunk head gvz SB-card"

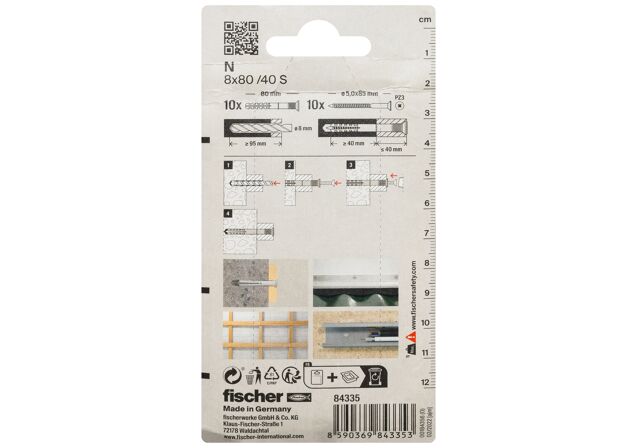

  • Packaging: "fischer Hammerfix N 8 x 80/40 S with countersunk head gvz SB-card"
  • Application Picture
    • Application Picture
    • Product Picture
    • Packaging
    • Packaging
      Art.-No. 84335

      fischer Hammerfix N 8 x 80/40 S with countersunk head gvz SB-card

      Product variants
      Download of image data
      Top Features
      • Fast Hammerset installation saves time: ideal for series installation.
      • Subsequent dismantling of the nail screw with a cross-slot recess is possible.
      • With countersunk head.
      • Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.

      The advantages / Product description

      The ha mmer-in plug for a simple, fast and economical installation
      Advantages
      • The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
      • The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
      • Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
      • The wide range of diameters and usage lengths provides the correct plug for every fixing.
      The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.

      Application and approval

      Applications
      • Substructures made of wood
      • Wall connection or plaster profiles
      • Cable and pipe clips
      • Perforated tapes
      Building materials
      • Concrete
      • Solid sand-lime brick
      • Building brick
      • Natural stone
      • Solid brick made from lightweight concrete
      • Aerated concrete
      • Solid panel made from gypsum
      You can find detailed information on building materials in the registration document.

      Assembly instruction

      Functionality
      • Suitable for push-through installation.
      • When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
      • Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.
      Mounting Strip 1 Picture
      1 / 4
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture

      Technical data

      Drill diameter (
      d0
      )      		8 mm
      Effect. anchorage depth (
      hef
      )      		40 mm
      Anchor length (
      l
      )      		80 mm
      Min. drill hole depth for through fixings (
      h2
      )      		95 mm
      Max. fixture thickness (
      t fix
      )      		40 mm
      Contents 10 x Hammerfix N 8 x 80
      10 x Nail 5.0 x 85 Z pre-assembled
      Packaging Blister card
      Amount 10 pcs.
      GTIN (EAN-Code) 8590369843353

      Documents for download

      • Technical documents
      Load Table
      pdf,
      Hammerfix N - Recommended loads for a single anchor.
