The one-piece hinged pipe clamp with floating single screw.

Hinged pipe clamp FGRS

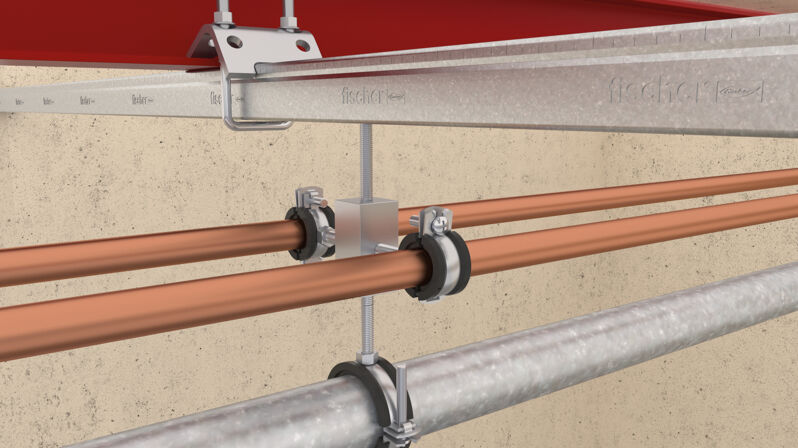

The fischer hinged pipe clamp FGRS is a pipe clamp with a screw made from zinc-plated steel in material quality DD11. The pendulum screw rapid locking mechanism enables a simple, time-saving one-hand installation process. The engaging of the safety locking mechanism ensures the safe adjustment of the pipe without the clamp springing open. This enables pipes with an outer diameter of 12 to 63 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

Product variants

Download of image data

Product variants

18 Product variant (s)

Clamping range

Max. recom. static load (centr. tension)

Thread

Size

Width

Width x thickness clamp band

Viewed 18 of 18 variant (s)

Clamping range ( D )	8 - 11 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	—
Width ( B )	45 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	29 mm
Height ( Z )	17 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4048962253788

Clamping range ( D )	12 - 14 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	1/4 in
Width ( B )	48 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	31 mm
Height ( Z )	21 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794203

Clamping range ( D )	15 - 19 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	3/8 in
Width ( B )	52 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	36 mm
Height ( Z )	24 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794210

Clamping range ( D )	20 - 24 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	1/2 in
Width ( B )	58 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	41 mm
Height ( Z )	26 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794227

Clamping range ( D )	25 - 30 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	3/4 in
Width ( B )	63 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	47 mm
Height ( Z )	28 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794234

Hinged pipe clamp FGRS

Product variants

The advantages / Product description

Application and approval

Assembly instruction

Clamping range ( D )	32 - 37 mm
Max. recom. static load (centr. tension) ( N_rec )	0,8 kN
Thread ( A )	M8
Size	1 in
Width ( B )	72 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( H )	54 mm
Height ( Z )	32 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794241

Clamping range ( D )	40 - 44 mm
Max. recom. static load (centr. tension) ( N_rec )	0,9 kN
Thread ( A )	M8
Size	1 1/4 in
Width ( B )	79 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( H )	61 mm
Height ( Z )	37 mm
Locking screw	M5
Amount	50 pcs.
GTIN (EAN-Code)	4006209794258

Clamping range ( D )	45 - 50 mm
Max. recom. static load (centr. tension) ( N_rec )	0,9 kN
Thread ( A )	M8
Size	1 1/2 in
Width ( B )	88 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( H )	67 mm
Height ( Z )	42 mm
Locking screw	M5
Amount	50 pcs.
GTIN (EAN-Code)	4006209794265

Clamping range ( D )	50 - 55 mm
Max. recom. static load (centr. tension) ( N_rec )	0,9 kN
Thread ( A )	M8
Size	—
Width ( B )	94 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( H )	72 mm
Height ( Z )	45 mm
Locking screw	M5
Amount	50 pcs.
GTIN (EAN-Code)	4006209794272

Clamping range ( D )	56 - 63 mm
Max. recom. static load (centr. tension) ( N_rec )	0,9 kN
Thread ( A )	M8
Size	2 in
Width ( B )	99 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( H )	80 mm
Height ( Z )	46 mm
Locking screw	M5
Amount	50 pcs.
GTIN (EAN-Code)	4006209794289
