The ETICS screw fixing for board materials with approved screw

TermoFix 6H-NT

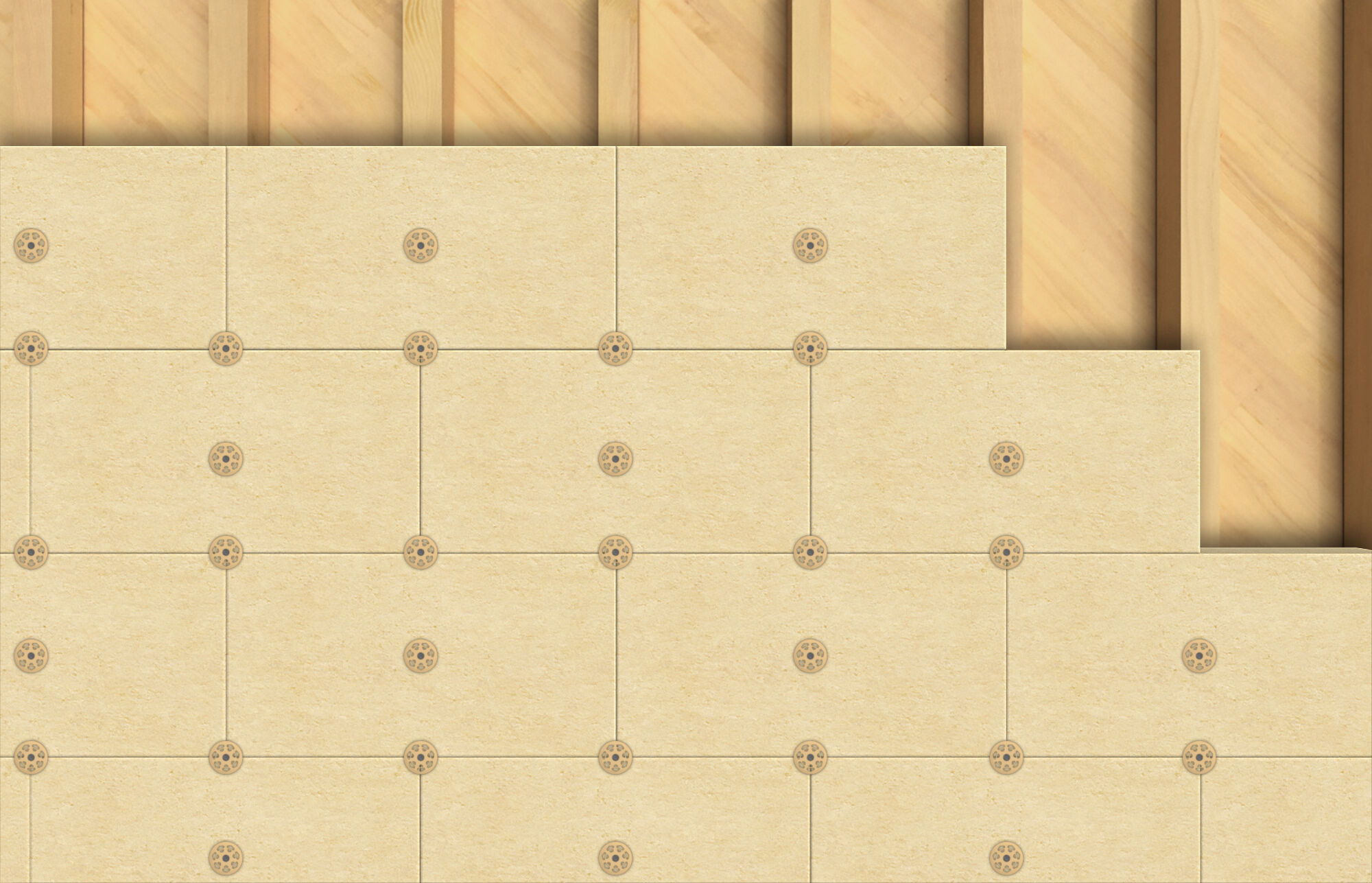

The fischer screw fixing TermoFix 6H-NT is ideal for fixing pressure-resistant insulation up to 280 mm in wood and panel building materials. The screw fixing comprises a support disc made from polyamide with a prefitted fischer screw with approval. The minimal embedment depth of 30 mm ensures fast installation. The TermoFix 6H-NT is set flush to the surface in the push-through installation with a cordless powerdriver without pre-drilling. The head is them sealed with the screw plug. Optionally, the TermoFix 6H-NT can be countersunk with the fisher setting tool TSS. The insulation disk is then covered with a round cap.

Variantes

Download of image data

Variantes

14 Variantes

Anchor length

Disc ø

Screw diameter

Anchorage depth

Usable length at surface-flush installation

Effective length with recessed mounting

Vu 14 de 14 variante (s)

Composants du système

Masonry drill bit Pointer M
3 Variantes
Round cap MW / PS
3 Variantes
Hammer drill bit Quattric II S / Quattric II
84 Variantes
Setting tools
7 Variantes

Anchor length ( l )	60 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	30 mm
Effective length with recessed mounting	—
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184105

Anchor length ( l )	80 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	50 mm
Effective length with recessed mounting ( t_fix )	65 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184112

Anchor length ( l )	100 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	70 mm
Effective length with recessed mounting ( t_fix )	85 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184129

Anchor length ( l )	120 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	90 mm
Effective length with recessed mounting ( t_fix )	105 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184136

Anchor length ( l )	140 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	110 mm
Effective length with recessed mounting ( t_fix )	125 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184143

TermoFix 6H-NT

Variantes

Les avantages / Description du produit

Application et autorisation

Instructions de montage

Documents à télécharger

Anchor length ( l )	160 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	130 mm
Effective length with recessed mounting ( t_fix )	145 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184150

Anchor length ( l )	180 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	150 mm
Effective length with recessed mounting ( t_fix )	165 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184167

Anchor length ( l )	200 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	170 mm
Effective length with recessed mounting ( t_fix )	185 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184174

Anchor length ( l )	220 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	190 mm
Effective length with recessed mounting ( t_fix )	205 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184181

Anchor length ( l )	240 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	210 mm
Effective length with recessed mounting ( t_fix )	225 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184198

Anchor length ( l )	260 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	230 mm
Effective length with recessed mounting ( t_fix )	245 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184204

Anchor length ( l )	280 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	250 mm
Effective length with recessed mounting ( t_fix )	265 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184211

Anchor length ( l )	300 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	270 mm
Effective length with recessed mounting ( t_fix )	285 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184228

Anchor length ( l )	320 mm
Disc ø	60 mm
Screw diameter ( d_s )	6.0 mm
Anchorage depth	30 mm
Usable length at surface-flush installation ( t_fix )	290 mm
Effective length with recessed mounting ( t_fix )	305 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962184235
