Art. nr. 80654

fischer Boiler fixing BO 120

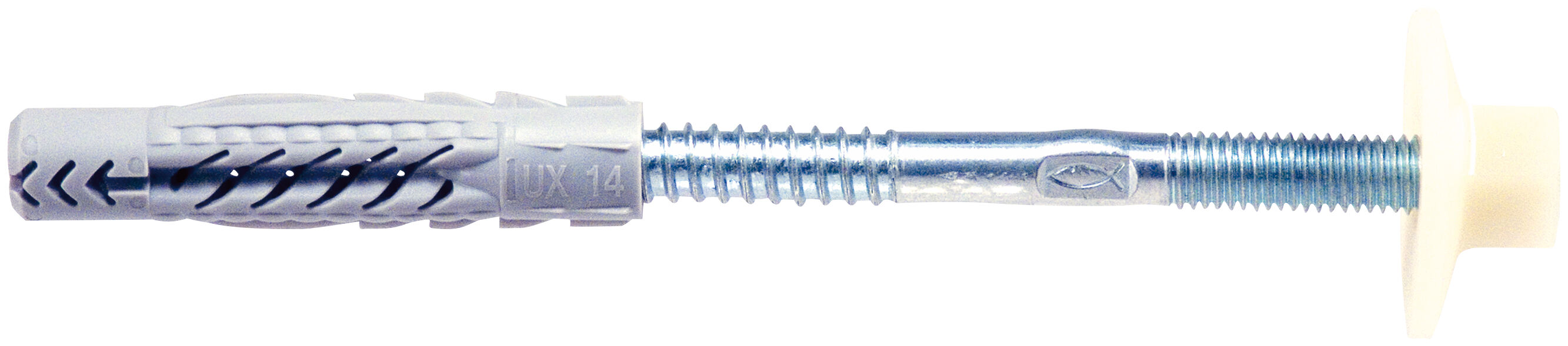

Name: fischer Boiler fixing BO 120
Brand: fischer

Productvarianten

Download of image data

Top Features

Complete fixing set with plug, flanged nut and screw.
UX plug for use in all solid and hollow building materials. Pre-positioned and push-through installation possible.
High-strength nylon that is resistant to ageing.

Complete fixing set for fixing boilers.

Advantages

Complete fixing sets allow for quick and easy installation.
The universal plug UX can be used in all solid, hollow and board materials, thus offering a high level of flexibility.
Flanged nuts and collar sleeves made of high-strength nylon are resistant to ageing and chemicals, and guarantee a long-lasting fixing that will not damage the ceramics.

The fischer fixing set BO contains all elements required for the quick and safe fixing of wall-hanging boilers: Four universal plugs UX, four zinc-plated stud screws and four flanged nuts without collar. With the fischer universal plug UX, the set can be mounted in solid and hollow building materials. The ageing-resistant and chemical-resistant flanged nut made from high-strength nylon ensures a lasting, damage-free fixing.

Applications

Boilers
Gas heaters
Cisterns
Consoles

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

De details (bouwmaterialen, belastingen, etc.) van de beschikbare goedkeuring zijn van toepassing.

Functionality

The rimless UX is suitable for pre-positioned and push-through installation.
Screwing in the screw causes the UX to expand in the solid building material and to knot within the cavity.
Maximum load-bearing capacity is only achieved when the screw is screwed in so far that the spanner flat lies on the plug rim.
Tiles and plaster are not classed as load-bearing base materials.

Mounting Strip 1 Picture

1 / 5

Contents	4 x Universal plug UX 14 x 75 4 x Stud screw M10 x 120 zinc-plated 4 x Flanged nut BU M10
Packaging	Folding box
Amount	4 pcs.
GTIN (EAN-Code)	4006209806548

fischer Boiler fixing BO 120
